Home >> Products >> Shipbuilding Bulb Flat
Product Name:

Shipbuilding Bulb Flat

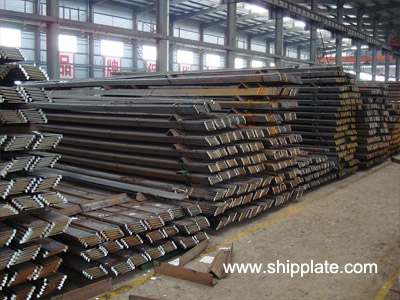

Product Image: Shipbuilding Bulb Flat
Description: 1. Material: Q235,Gr.A,AH36,DH36
2. Standard: EN10067 GB/T9945
3. Certification: CCS, GL, LR, ABS, BV, DNV, RINA, NK, KR
4. Specification: 80mm X 5mm ~ 430mm X 20mm (HP80-HP430)
Size: 100*6 100*7 120*6 140*7 140*8 140*9 160*7 160*8 160*9 180*8 200*11 200*9 200*10
Size ( b x t ) Theoretical
weight (kg/m)
Size ( b x t ) Theoretical
weight (kg/m)
Size ( b x t ) Theoretical
weight (kg/m)
HP80 x 5 4.25 HP200 x 9 18.57 HP300 x 13 41.44
HP80 x 6 4.88 HP200 x 10 20.14 HP320 x 12 42.60
HP100 x 7 6.86 HP200 x 11 21.71 HP320 x 13 45.09
HP100 x 8 7.65 HP200 x 12 23.28 HP320 x 14 47.60
HP120 x 6 7.32 HP220 x 10 22.77 HP340 x 12 46.20
HP120 x 7 8.26 HP220 x 11 24.50 HP340 x 13 48.86
HP120 x 8 9.20 HP220 x 12 26.22 HP340 x 14 51.50
HP140 x 7 9.75 HP240 x 10 25.50 HP370 x 13 54.70
HP140 x 8 10.85 HP240 x 11 27.39 HP370 x 14 57.60
HP140 x 10 13.05 HP240 x 12 29.27 HP370 x 15 60.50
HP160 x 7 11.46 HP260 x 10 28.35 HP400 x 14 63.96
HP160 x 8 12.72 HP260 x 11 30.39 HP400 x 15 67.10
HP160 x 9 13.97 HP260 x 12 32.43 HP400 x 16 70.20
HP160 x 11 16.49 HP280 x 11 33.50 HP430 x 14 70.60
HP180 x 8 14.80 HP280 x 12 35.70 HP430 x 15 73.90
HP180 x 9 16.22 HP280 x 13 37.90 HP430 x 17 80.70
HP180 x 10 17.63 HP300 x 11 36.70 HP430 x 19 87.40
HP180 x 11 19.04 HP300 x 12 39.09 HP430 x 20 90.80
