| Home >> Products >> Q345B Angle |
| Product Name: |

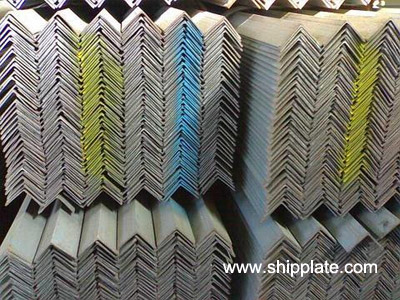

Q345B Angle |
| Product Image: |
 |
| Description: |
1. Quality:SS400 SS540 ASTM-A36 A572 Q235B Q345B Q420B
2. Standard:DIN,JIS,ASTM.
specification
leg length*leg length*thickness
(mm)
| weight
(kg/m) | specification
leg length*leg length*thickness
(mm)
| weight
(kg/m) | | 20x20x3 | 0.889 | 90x90x7 | 9.656 | | 25x25x3 | 1.124 | 90x90x8 | 10.946 | | 25x25x4 | 1.459 | 90x90x10 | 13.476 | | 30x30x3 | 1.373 | 100x100x6 | 9.366 | | 30x30x4 | 1.786 | 100x100x7 | 10.83 | | 38x38x3 | 1.74 | 100x100x8 | 12.276 | | 38x38x4 | 2.26 | 100x100x10 | 15.12 | | 40x40x3 | 1.852 | 100x100x12 | 17.898 | | 40x40x4 | 2.422 | 110x110x7 | 11.928 | | 40x40x5 | 2.976 | 110x110x8 | 13.532 | | 45x45x3 | 2.088 | 110x110x10 | 16.69 | | 45x45x4 | 2.736 | 110x110x12 | 19.782 | | 45x45x5 | 3.369 | 125x125x8 | 15.504 | | 50x50x3 | 2.332 | 125x125x10 | 19.133 | | 50x50x4 | 3.059 | 125x125x12 | 22.696 | | 50x50x5 | 3.77 | 140x140x10 | 21.488 | | 50x50x6 | 4.465 | 140x140x12 | 25.522 | | 63x63x5 | 4.822 | 140x140x14 | 29.49 | | 63x63x6 | 5.721 | 150x150x10 | 22.9 | | 63x63x8 | 7.469 | 150x150x12 | 27.3 | | 70x70x5 | 5.397 | 150x150x15 | 33.6 | | 70x70x6 | 6.406 | 160x160x10 | 24.729 | | 70x70x7 | 7.398 | 160x160x12 | 29.391 | | 70x70x8 | 8.373 | 160x160x14 | 33.987 | | 75x75x5 | 5.818 | 160x160x16 | 38.518 | | 75x75x6 | 6.905 | 180x180x12 | 33.159 | | 75x75x7 | 7.976 | 180x180x14 | 38.383 | | 75x75x8 | 9.03 | 180x180x16 | 43.542 | | 75x75x10 | 11.089 | 180x180x18 | 48.634 | | 80x80x6 | 7.376 | 200x200x14 | 42.894 | | 80x80x7 | 8.525 | 200x200x16 | 48.68 | | 80x80x8 | 9.658 | 200x200x18 | 54.401 | | 80x80x10 | 11.874 | 200x200x20 | 60.056 | | 90x90x6 | 8.35 | 200x200x24 | 71.168 | | length=6--12meters |
|
