Product Name:

Inverted Angle

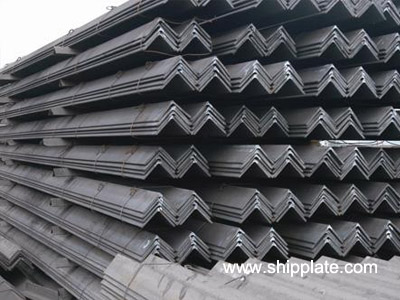

Product Image: Inverted Angle
Description: 1. Description:A kind of ship steel bearing the section with two orthogonal sides.It is divided into equal angle and unequal angle.
2. Use:Framework of kinds of construction and engineering also can be used in some frame part such as construction joist frame,iron tower ,derrick frame and so on.
3. Steel grade:Q195-235;Q235B;Q345B(section above 80mm)
Size (a x b x t) Theoretical
weight (kg/m)
Size (a x b x t) Theoretical
weight (kg/m)
Size (a x b x t) Theoretical
weight (kg/m)
100 x 75 x 7 9.32 140 x 90 x 8 14.16 180 x 110 x 10 22.273
100 x 75 x 8 10.6 140 x 90 x 10 17.475 180 x 110 x 12 26.464
100 x 75 x 10 13.0 140 x 90 x 12 20.724 180 x 110 x 14 30.589
100 x 75 x 12 15.4 140 x 90 x 14 23.908 180 x 110 x 16 34.649
100 x 80 x 6 8.35 150 x 90 x 9 16.4 200 x 100 x 10 23.0
100 x 80 x 7 9.656 150 x 90 x 10 18.2 200 x 100 x 12 27.3
100 x 80 x 8 10.946 150 x 90 x 12 21.5 200 x 100 x 14 31.6
100 x 80 x 10 13.476 150 x 90 x 15 26.6 200 x 100 x 16 35.9
125 x 75 x 7 10.7 150 x 100 x 9 17.1 200 x 125 x 12 29.761
125 x 75 x 8 12.2 150 x 100 x 10 19 200 x 125 x 14 34.436
125 x 75 x 10 14.9 150 x 100 x 12 22.4 200 x 125 x 16 39.045
125 x 75 x 12 17.8 150 x 100 x 15 27.7 200 x 125 x 18 43.588
125 x 75 x 13 19.1 150 x 100 x 16 29.5
125 x 80 x 7 11.066 160 x 100 x 10 19.872
125 x 80 x 8 12.551 160 x 100 x 12 23.592
125 x 80 x 10 15.474 160 x 100 x 14 27.247
125 x 80 x 12 18.330 160 x 100 x 16 30.835
