| Product Name: |
Hot Rolled Channel Steel |

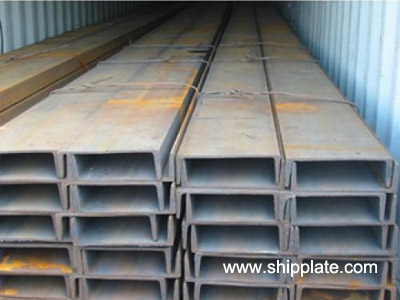

| Product Image: |
 |
| Description: |
Channel is a kind of strip steel with a flute section. When therhen thereen there are kinds of channef channel with the same l with the same height of waist but different width of legs and thickness of waist, they must be differentiated by a erentiated by a b c, which is added to tded to the right of the type No. such as 25a# 25b# 25c# and so on.
1. Size: 51x25x3mm-305x80x13mm
2. Material: Q195,Q215,Q235,A36,SS400,SS540
| CHANNEL BAR | | size(mm) | h(mm) | b(mm) | Thickness(mm) | Density(kg/m) | | 5# | 50 | 37 | 4.5 | 5.438 | | 6.3# | 63 | 40 | 4.8 | 6.634 | | 8# | 80 | 43 | 5 | 8.045 | | 10# | 100 | 48 | 5.3 | 10.007 | | 12# | 120 | 53 | 5.5 | 12.059 | | 14A# | 140 | 58 | 6 | 14.535 | | 14B# | 140 | 60 | 8 | 16.733 | | 16A# | 160 | 63 | 6.5 | 17.24 | | 16B# | 160 | 65 | 8.5 | 19.752 | | 18A# | 180 | 68 | 7 | 20.174 | | 18B# | 180 | 70 | 9 | 23 | | 20A# | 200 | 73 | 7 | 22.637 | | 20B# | 200 | 75 | 9 | 25.777 | | 22A# | 220 | 77 | 7 | 24.999 | | 22B# | 220 | 79 | 9 | 28.453 | | 25A# | 250 | 78 | 7 | 27.41 | | 25B# | 250 | 80 | 9 | 31.335 | | 28A# | 280 | 82 | 7.5 | 31.427 | | 28B# | 280 | 84 | 9.5 | 35.823 | | 30A# | 300 | 85 | 7.5 | 34.463 | | 30B# | 300 | 87 | 9.5 | 39.173 | | 32A# | 320 | 88 | 8 | 38.083 |
|
