| Product Name: |
Angle Steel |

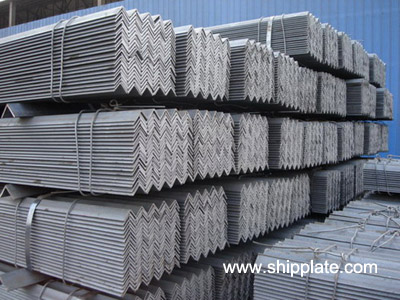

| Product Image: |
 |
| Description: |
A kind of strip steel bearing the section with two orthogonal sides. It is divided into equal angle and unequal angle.
1. Steel grade: Q195-235; Q235B; Q345B (section above 80mm).
2. Standard: GB/T 700-1988
3. Size: 20x20x2.5-200x200x24.
Length: 6/12m (12m is usually available for section above 80mm).
Use: Framework of kinds of construction and engineering also can be used in some frame part such as construction joist frame, iron tower, derrick frame and so on.
Material
(Steel Grade) |
Size (b×b×d) (mm) |
Q 235 A /B
Q 345 A |
20×20×3 |
63×63×5 |
100×100×6 |
140×140×14 |
| 20×20×4 |
63×63×6 |
100×100×7 |
140×140×15 |
| 25×25×3 |
63×63×8 |
100×100×8 |
140×140×16 |
| 25×25×4 |
63×63×10 |
100×100×10 |
150×150×10 |
| 30×30×3 |
70×70×4 |
100×100×12 |
150×150×12 |
| 30×30×4 |
70×70×5 |
100×100×14 |
150×150×14 |
| 36×36×3 |
70×70×6 |
100×100×16 |
150×150×16 |
| 36×36×4 |
70×70×7 |
110×110×7 |
160×160×10 |
| 40×40×3 |
70×70×8 |
110×110×8 |
160×160×12 |
| 40×40×4 |
75×75×5 |
110×110×10 |
160×160×14 |
| 40×40×5 |
75×75×6 |
110×110×12 |
160×160×16 |
| 45×45×3 |
75×75×7 |
110×110×14 |
180×180×12 |
| 45×45×4 |
75×75×8 |
125×125×8 |
180×180×14 |
| 45×45×5 |
75×75×10 |
125×125×10 |
180×180×16 |
| 50×50×3 |
80×80×5 |
125×125×12 |
180×180×18 |
| 50×50×4 |
80×80×6 |
125×125×14 |
200×200×14 |
| 50×50×5 |
80×80×7 |
130×130×9 |
200×200×16 |
| 50×50×6 |
80×80×8 |
130×130×10 |
200×200×18 |
| 56×56×4 |
80×80×10 |
130×130×12 |
200×200×20 |
| 56×56×5 |
90×90×8 |
130×130×14 |
200×200×24 |
| 56×56×6 |
90×90×10 |
140×140×10 |
|
| 63×63×4 |
90×90×12 |
140×140×12 |
|
|
